Home>Products>Measurement Display Alarm Instrument>AI Series Single-Channel Measurement Display Alarm Instrument

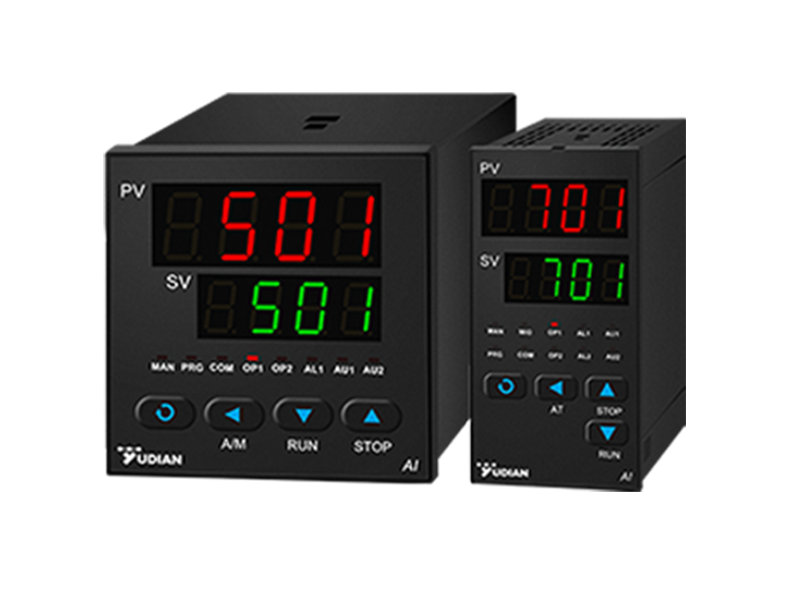

AI Series Single-Channel Measurement Display Alarm Instrument
AI-200 Series: 0.3-class measurement accuracy with a single-row 4-digit display
AI-211 Series: 0.3-class measurement accuracy, dual-row 4-digit display
AI-500 Series: 0.3-class measurement accuracy, single-row 4-digit display
AI-501 Series: 0.3-class measurement accuracy with a dual-row 4-digit display
AI-700 Series: 0.2-class measurement accuracy with a single-row 4-digit display
AI-701 Series: 0.2-class measurement accuracy, dual-row 4-digit display
AI-200 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.3-Class accuracy, with a two-year free warranty.
2. Single-row 4-digit display.
3. Support RTD and thermocouple inputs; no 0-5V or 1-5V inputs.
4. Multiple alarm modes with customizable alarm output locations; support 1-2 alarm outputs.
5. Optional welded modules and panel-mounted instrument sizes such as A1, D, D21, E1, F1.
AI-211 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.3-Class measurement accuracy, with a two-year free warranty.
2. Dual-row 4-digit display.
3. Support RTD and thermocouple inputs, 0-5V and 1-5V inputs; optional alarm and communication functions, only available with welded modules.
4. Support AIbus and Modbus communication protocols; TCP network connectivity can be achieved via communication controllers.
5. Main output operates in ON/OFF control mode and can also be used for alarm purposes.
AI-500 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.3-Class measurement accuracy, with a 3-year free warranty.
2. Single-row 4-digit display.
3. Support thermocouples, RTDs, and 0~5V or 1~5V inputs. Input modules can be installed, with options for pluggable modules. However, B panel size is not supported. Communication functionality is available.
4. The main output is in current transmitter mode.
AI-501 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.3-Class measurement accuracy, with a 3-year free warranty.
2. Dual-row 4-digit display.
3. Support thermocouple, RTD, and 0~5V or 1~5V inputs. Input modules can be installed, with options for pluggable modules.B panel size is optional. Communication functionality is available.
4. The main output is in current transmitter mode.
AI-700 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.2-Class measurement accuracy, with a 5-year free warranty.
2. Single-row 4-digit display.
3. Support thermocouples, RTDs, and 0~5V or 1~5V inputs. Input modules can be installed, with options for pluggable modules. However, B panel size is not supported. Communication functionality is available.
4. The main output is in current transmitter mode.
AI-701 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.2-Class measurement accuracy, with a 5-year free warranty.
2. Dual-row 4-digit display.
3. Support thermocouple, RTD, and 0~5V or 1~5V inputs. Input modules can be installed, with options for pluggable modules.B panel size is optional. Communication functionality is available.
4. The main output is in current transmitter mode.
| File Name | Number | Associated Model | Version | Preview | Download |
|---|---|---|---|---|---|
| AI-700/701 Intelligent Measuring and Alarm Instrument Instrument User’s manual | S183-08 | 700/701 | V9.2 |
|
|
| AI-500/501 INTELLIGENT INDICATING/ALARM INSTRUMENT Operation Instruction | S049-18 | 500/501 | V9.1 |
|
|
