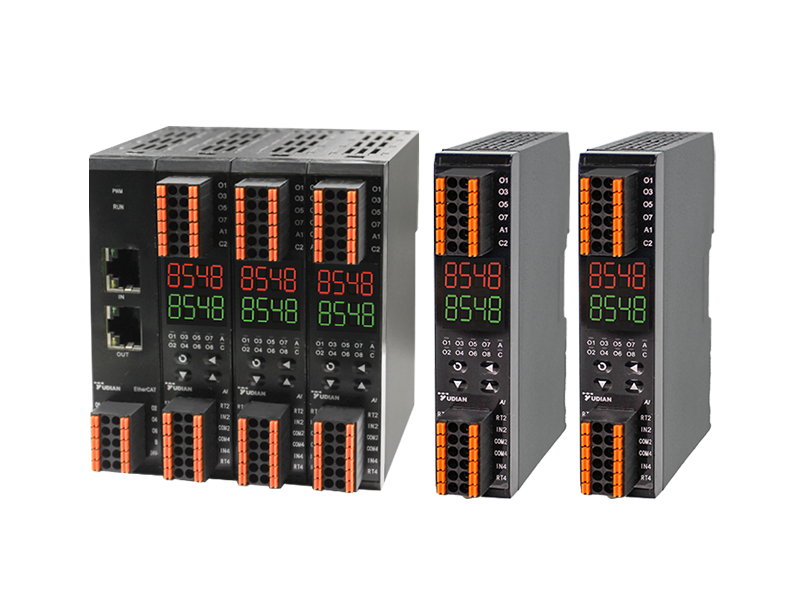

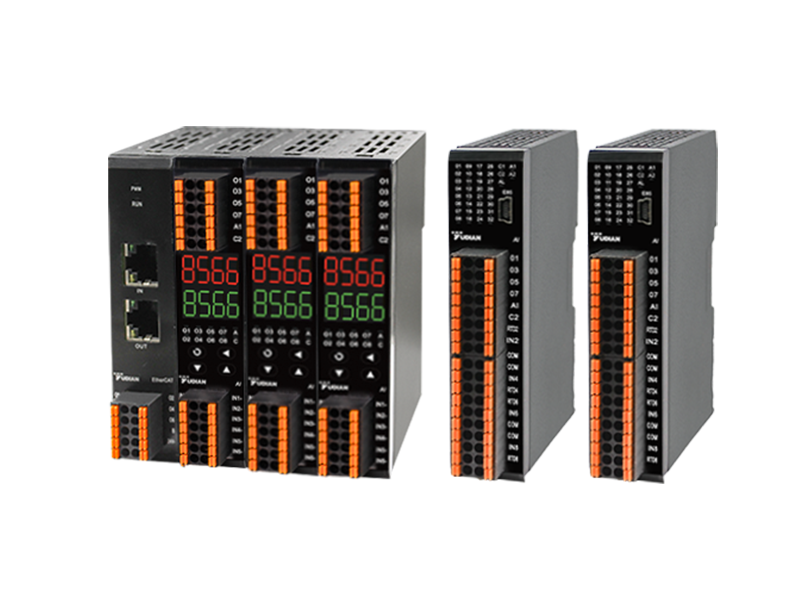

AI-85XX Series Economical Multi-Channel Temperature Controllers
AI-8588D92J0: Support 8 channels of PT100 and PT1000 compatible inputs. One 24-bit high-performance A/D converter is assigned per 4 channels for sampling. Measurements are performed in a sequential mode, with a minimum sampling and control cycle of 0.5 seconds.
AI-8546GD91J1: 4-channel thermocouple input
AI-8566GD91J1: 6-channel thermocouple input
1. Multifunctional Multi-channel intelligent temperature controller, with selectable measurement accuracy ranging from class 0.15 to 0.3, featuring a compact design.
2. Available in various models with multiple input types and channel counts to suit diverse customer needs.
3. Equipped with a 24-bit high-performance A/D converter for sampling, utilizing a sequential measurement method, offering excellent cost performance.
4. Optional NPN, PNP, and SSR drive outputs or linear voltage/current outputs; optional 2-channel alarm outputs.
5. Support the Modbus communication protocol with a baud rate range of 1200~115200.
